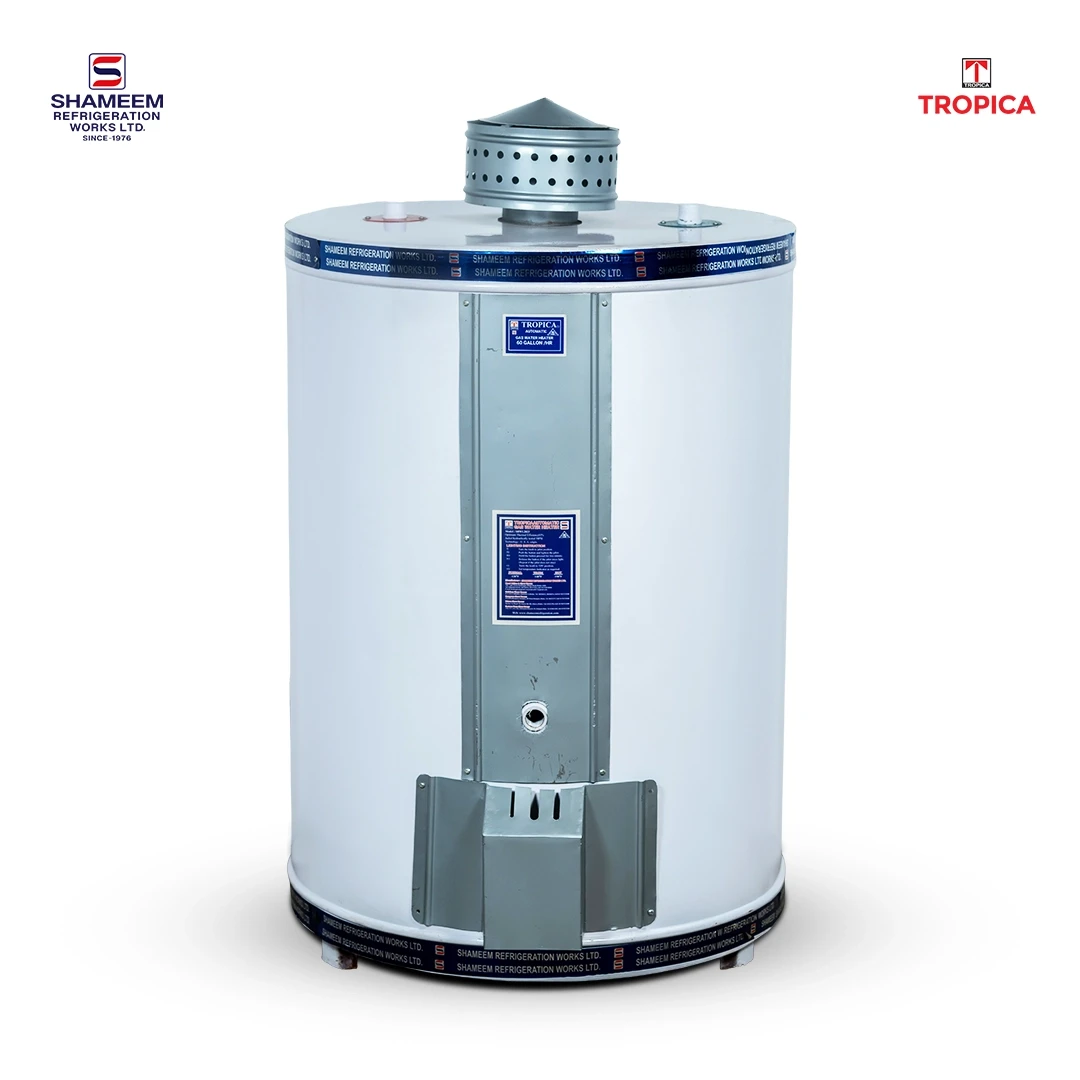

Shameem Tropica Geyser 150 Gallon (675 Liter)

Instruction :

Tropica brand automatic electric water heater is designed and fabricated for both domestic & commercial installations. Tropica can supply hot water For bathtub, basin, shower, washing machine, kitchen etc. Components e.g.  heating element, thermostat, Pressure valve etc, used in manufacturing Tropica heater are of Italian origin. We provide 100% guarantee for high quality workmanship Tropica brand electric water heater is available in different colours, round shape and in the range from 10 to  100 gallon (45-450 Litre). Tropica water heater are both wall & floor mounted type. Unique characteristic of Tropica heater is its consumption of low power.

Installation:

Tropica electric water heater can be installed on the wall or floor or on false ceiling. While installing make sure that the heater is fixed secured to the bolts with mirvent on top position.

The two heater lines are indicated with RED for hot water & BLUE for normal water.

Precaution:

• The heater must be installed below the overhead water source.
• Connect normal water line to the water source (Water Tank) and the hot water line (RED) into the house system.
•  Install vent pipe or pressure valve to avoid airlock into the hot water system.
• Open main valve and fill the water heater with normal water .Open several tap or points to allow air to escape from the system.
• Specially before operating the water heater be sure that the normal water is passing through the hot water system or points. If  so, then switch the water heater ON, otherwise there is every possibility of damaging or burning of the element itself.
